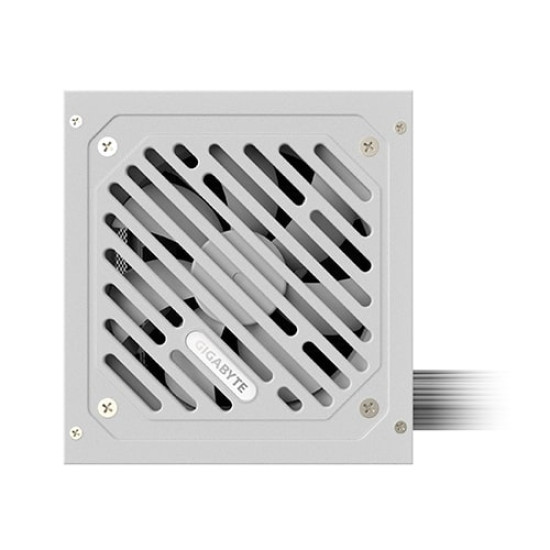

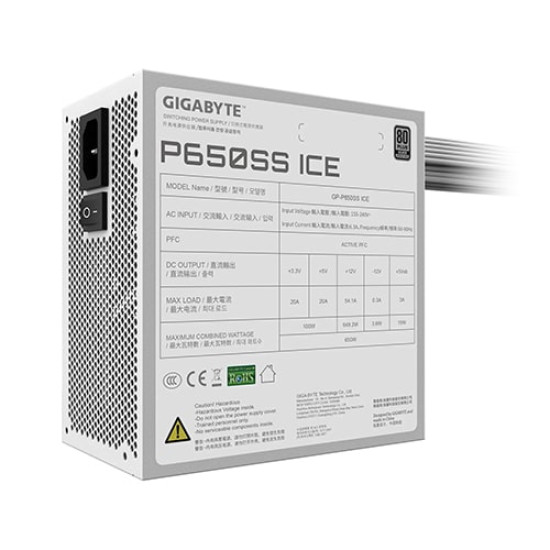

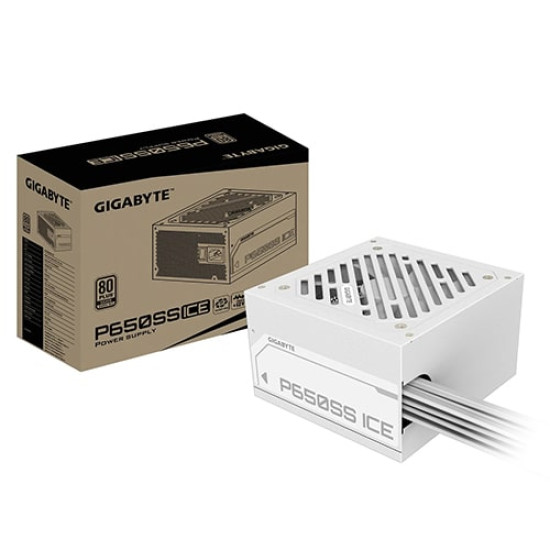

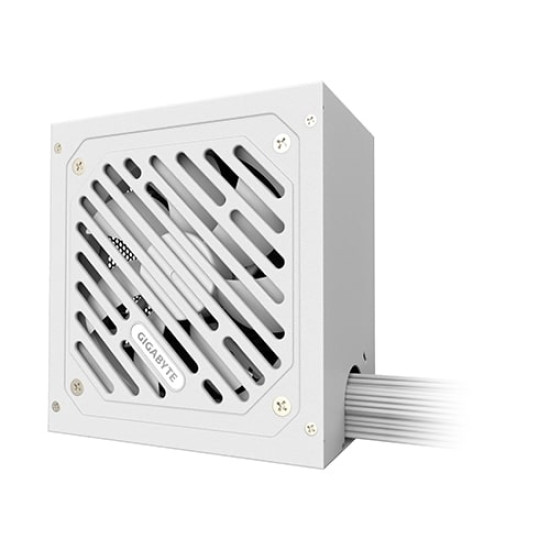

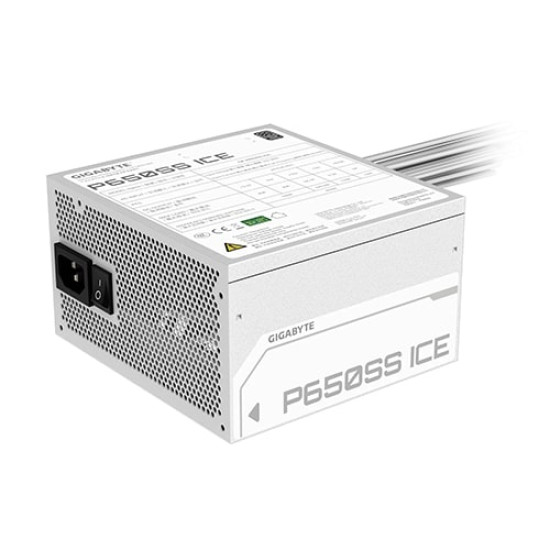

Gigabyte P650SS ICE Silver ATX 3.0 650W 80 Plus PSU

Key Features

• Ice white aesthetics
• 80 PLUS Silver certified (230V EU)
• Support Intel ATX 3.0 standard (compatible with ATX 3.1)
• 120mm Fluid Dynamic Bearing (FDB) Fan
• Flat cable design
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection

80 PLUS SILVER CERTIFIED

The 80 Plus Silver certification (230V EU) guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.

Support Intel ATX 3.0 standard (compatible with ATX 3.1)

The P650SS ICE can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 / ATX 3.1 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

120MM FLUID DYNAMIC BEARING(FDB) FAN

High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.

RELIABLE FLAT CABLE DESIGN

The utilization of flat cables minimizes clutter while enhancing the thermal performance of the chassis.

SINGLE +12V RAIL

The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.

PROTECTION

To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.

Specification

Model : GP-P650SS ICE

Type : Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)

PFC : Active PFC (>0.9 typical)

Input Voltage : 155-240 Vac

Input Current : 6.3A

Input Frequency : 60-50 Hz

Output Capacity : 650W

Dimensions : 150 x 140 x 86 mm

Fan Type : 120mm Fluid Dynamic Bearing (FDB) fan

80 PLUS : Silver

Efficiency : 90% at typical load (230V EU)

MTBF : >100,000 hours

Protections : OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal : 100-150ms

Hold Up Time : >16ms

Cable Type : Flat, All white

Connectors

ATX/MB 20+4 Pin x 1 : 600mm*1

CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1

PCI-e 6+2 Pin x 2 : 600mm*2

SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1

SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
